Emergency USB charger for mobile

img_0506-620x200

Having to travel often for work and I suffered some times the nuisance of having the mobile battery almost drain and not being able to find an outlet to charge it. Emergency chargers are widely available but I prefered to build my own.

This is the bill of material I used:

  • LED flashlight for AAA or 18650 batteries (0,5€ eBay)
  • Solar Boost DC-DC 3V-5V Adjustable Power Supply Module (3€ eBay)
  • 8650 battery (3.7V 2600mA) and charger (less than 5€ eBay)

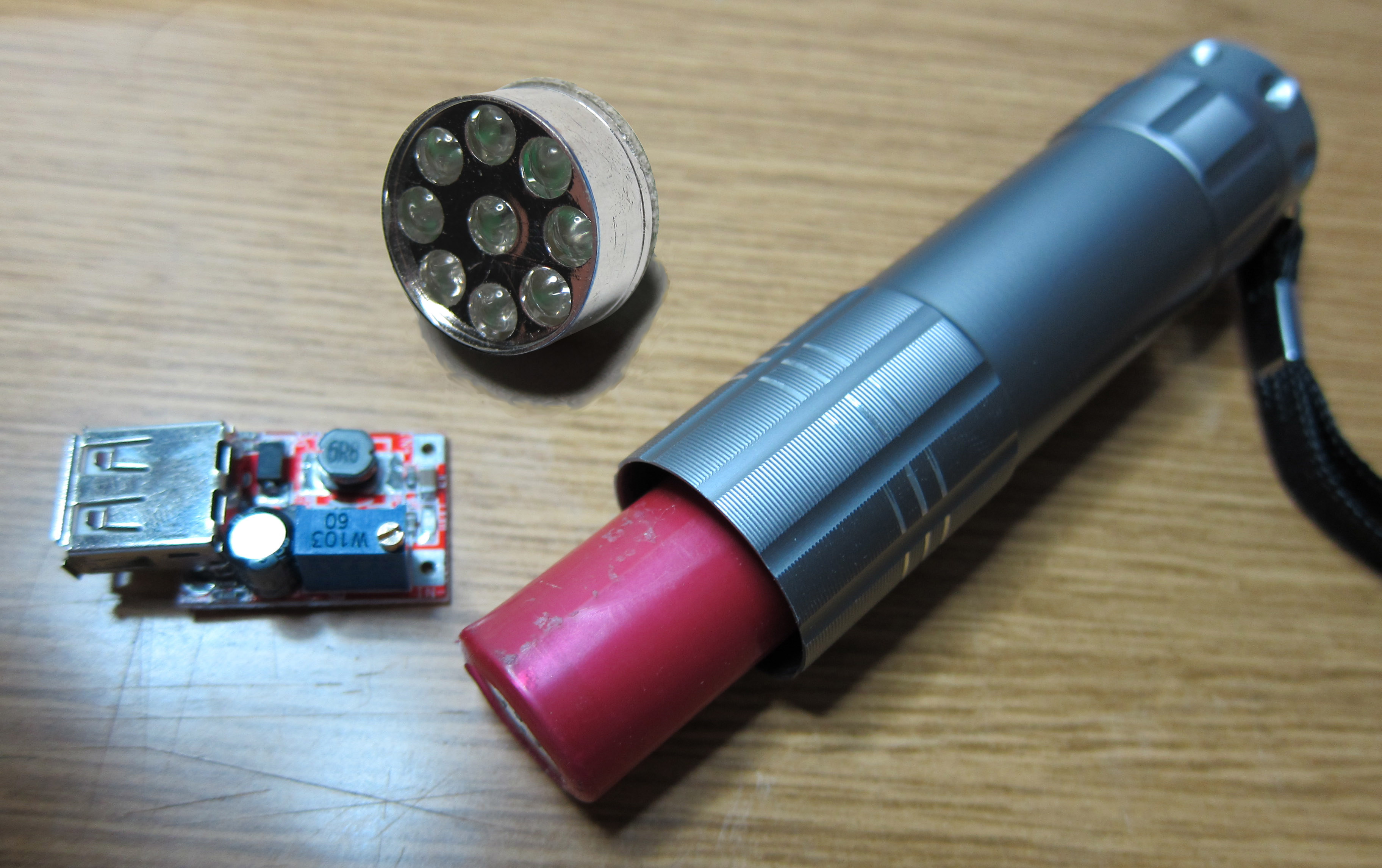

The first was to take apart the LEDs from the flashlight as I only need the housing to use it as battery holder with ON/OFF push button.

IMG_0485

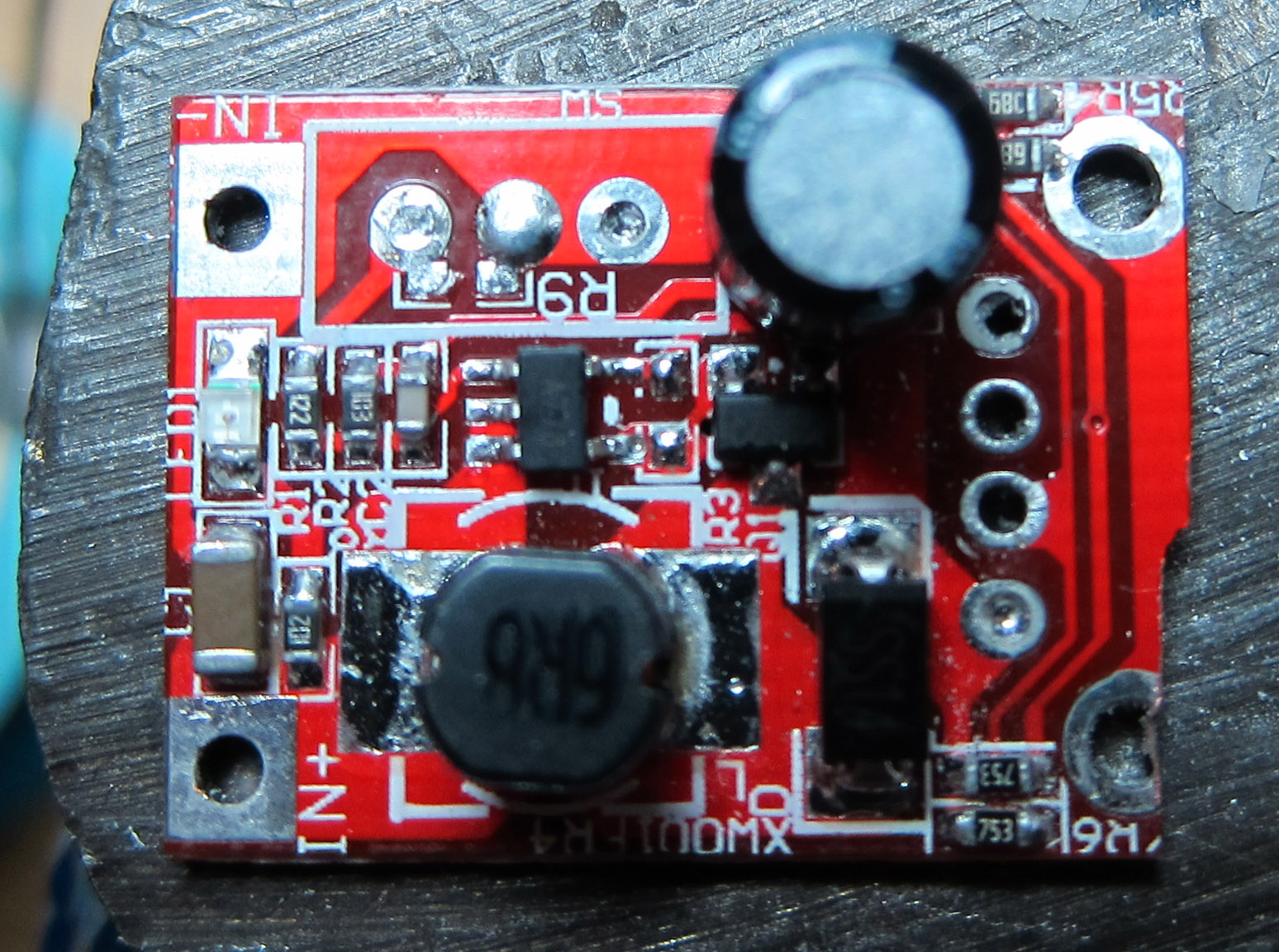

I did some changes to the DC-DC module so the battery and the module can fit on the flashlight. The potentiometer was replaced by a fixed resistor with the value that gives 5V output, I wired the USB socket apart from the board so I can place it next to the DC-DC module and I cut a little the board.

img_0502

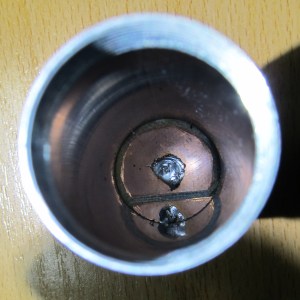

I also made a circular circuit board that fits tight inside the flashlight and connects the battery with the DC-DC module using the housing as conductor.

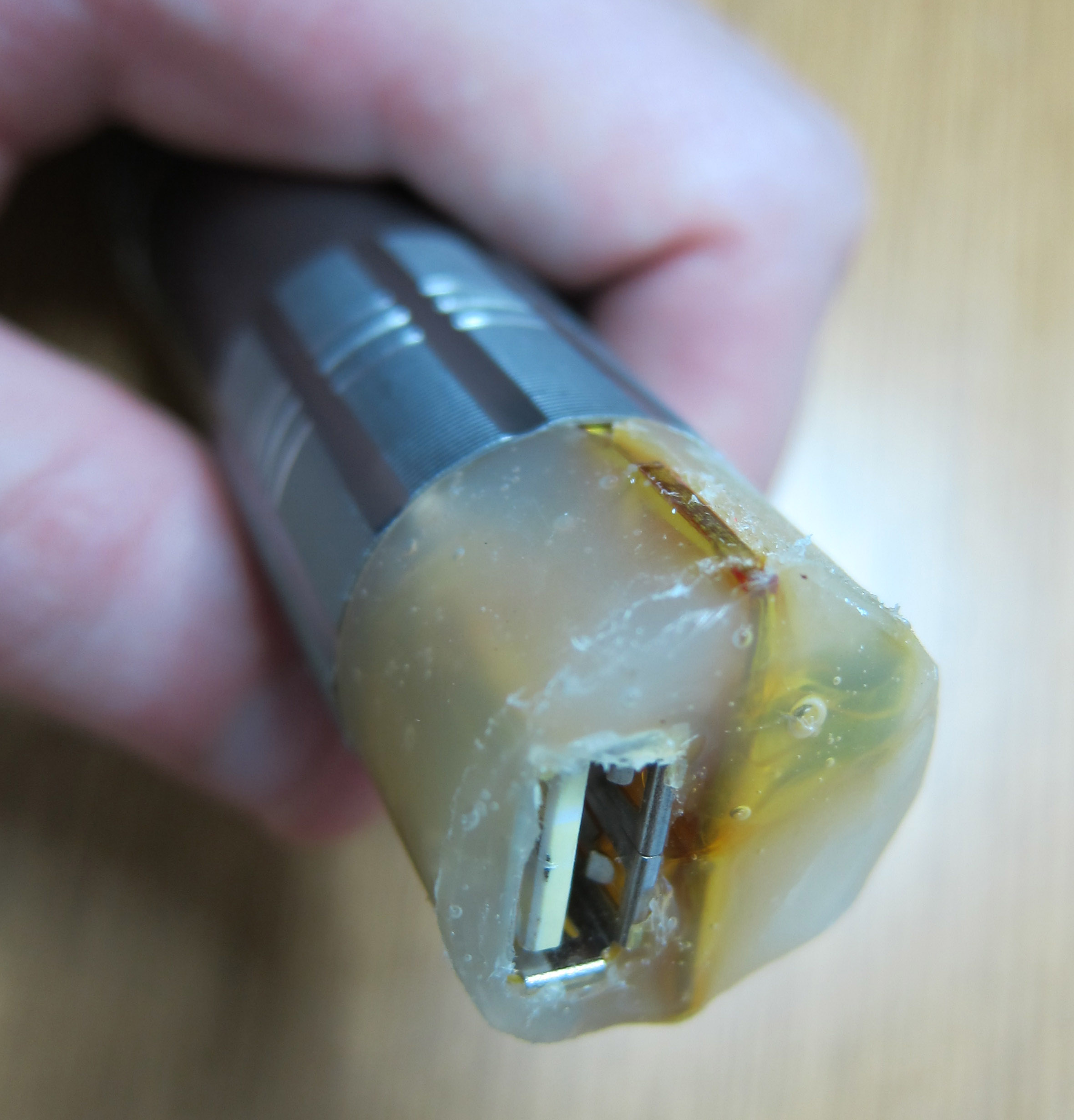

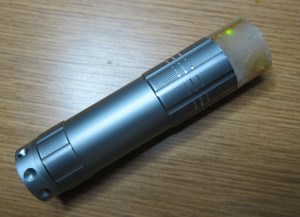

Even after these modifications the module protrude from the flashlight a little, so I filled the space with hot-melt adhesive using a mold to give it a round shape.

img_0506img_0507
